VARISTAR CP ELECTRONIC CABINETS

All-around protection:

EMC (EN 61000-5-7and IEC 61587) IP 55 protection (IEC 60529) & fire safety (EN45545)

Access Control:

Mechanical design in combination with advanced locking system ensures state of the art security

Outstanding cable management:

Avoid air resistance, strains, bends and pressure points to ensure performance

Modularity

Easily modifiable to meet various application requirements and also to reflect individual brand identity

Stability:

Trust in tested static load of 1,600 kg and 1,000 kg dynamic load with integrated castors

Reduced setup time

Accessories can be installed and uninstalled quickly and easily with just one TORX 30 screwdriver

Power management:

Integrated, reliable power distribution and management

Maximum fixing flexibility

Unique meander frame profile for easy mounting and integration of accessories

MeDium =768px
LarGe =992px

All-around protection:
EMC (EN 61000-5-7and IEC 61587) IP 55 protection (IEC 60529) & fire safety (EN45545)

Access Control:
Mechanical design in combination with advanced locking system ensures state of the art security

Outstanding cable management:
Avoid air resistance, strains, bends and pressure points to ensure performance

Modularity:
Easily modifiable to meet various application requirements and also to reflect individual brand identity

Stability:
Trust in tested static load of 1,600 kg and 1,000 kg dynamic load with integrated castors

Reduced setup time:
Accessories can be installed and uninstalled quickly and easily with just one TORX 30
screwdriver

Power management:
Integrated, reliable power distribution and management

Maximum fixing flexibility:
Unique meander frame profile for easy mounting and integration of
accessories

Products

A solution as diverse as your requirements

  • In a single platform Varistar CP offers the highest functionality along with unlimited adaptability at a competitive price
  • Infinitely variable, extremely efficient and amazingly universal

  • Broad range of standard articles available to configure the cabinet with
  • Extensive array of accessories to choose from (most of them also used in Varistar)

  • More Robust than before
  • Improved manageability and ease of mounting
  • Streamlined design
  • UL 2416 compliance in addition to all other compliances
Modular and configurable product offering

Broad range of standard cabinet dimensions, allow easy and fast customer-specific configuration and modifications to reduce lead time.

Widths
  • 600 mm / 23.6”
  • 800 mm / 31.5”
Depths
  • 600 mm / 23.6“
  • 800 mm / 31.5“
  • 900 mm / 35.4“
  • 1000 mm / 39.4”
  • 1100 mm / 43,3“
  • 1200 mm / 47.2”
Heights
  • 24 U (1200 mm / 47.2“)
  • 29 U (1400 mm / 55.1“)
  • 33 U (1600 mm / 63“)
  • 38 U (1800 mm / 70.8“)
  • 42 U (2000 mm / 78.7”)
  • 47 U (2200 mm / 86.6”)
  • 52 U (2450 mm / 96.46“)
Standard colors
  • A total of 21 standard colors including RAL7021 & RAL7035 available in the nVent SCHROFF portfolio
  • RAL7021 - Black Grey - Available on the website
  • RAL7035 - Light Grey - available at no extra cost on request
Loads
  • Static (19“-area) 1,600 kg
  • Dynamic 1,000 kg

Modular and configurable product offering

Varistar CP – Standard pre-configured cabinets

HE 38 38 42 42 38 38 42 42 42 42 42 42 42
Height 1800 1800 2000 2000 1800 1800 2000 2000 2000 2000 2000 2000 2000
Width 600 600 600 600 600 600 600 600 600 600 600 600 600
Depth 600 800 600 800 600 800 600 800 600 600 800 800 800
Color RAL7021 RAL7021 RAL7021 RAL7021
Item Number 10630-033 10630-034 10630-035 10630-036 10630-037 10630-038 10630-039 10630-040 10630-041 10630-042 10630-043 10630-044 10630-045
Simple Description VaristarCP DECO VaristarCP IP20 VaristarCP IP55 VaristarCP EMC

Varistar CP provides standard cabinets which can be modified and configured to meet specific project requirements

Easy hangable side and rear panels and special screws with tip make Varistar CP the easiest cabinet to assemble and mount single handedly

Easy hangable side and rear panels and special screws with tip make Varistar CP the easiest cabinet to assemble and mount single handedly

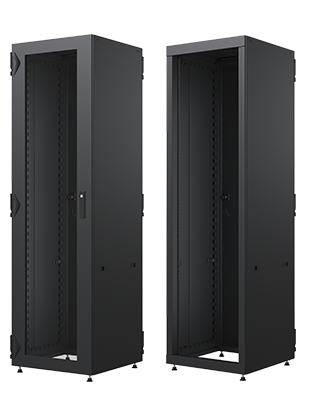

Varistar CP IP20 cabinets come with effective and a wide array of cabling options

19″ cable duct Panel
Horizontal 1U / 2U cable channel
19″ panel for cable eyes
Single / Double steel cable eyes
Rubber Pad for double steel cable eye 80mm D / 115mm D

Cable eye plastic 55mmD / 100mmD
LWL cable eye DNS Panel Mount / Electronic Panel Mount
Cable ties / velcro strip / Cable Shell
Plastic / Steel Cable Eye
C-rail

Cable retention rail for C-rail
Slide nut for C-rail
C-rail for the width
Cable panel 250mm
Tray for excess cable lengths


  • Varistar CP will have less issues with door colliding with cabinet base and top panel
  • Varistar CP is always proposed with adjustable feet, as the door has now come closer to the ground.

The new and improved Varistar CP cabinet platform is compatible only with Varistar CP parts.
Varistar legacy cabinet parts cannot be mounted on the Varistar CP platform

3 hinges (Varistar CP IP20) instead of 2 hinges (Varistar IP20) for cabinets >= 38 U

  • The top and bottom hinges have been pushed towards the outer edge
  • Cabinets from 25 U to 33 U will continue to have 2 hinges

The new and improved Varistar CP cabinet platform is compatible only with Varistar CP parts.
Varistar legacy cabinet parts cannot be mounted on the Varistar CP platform

Varistar CP EMC doors have large number of locking points and hinges for larger dimensions

4 Point Locking and 4 hinges for:

  • 1600H / 33U
  • 1800H / 38U
  • 2000H / 42U



Varistar CP IP55 doors have no visible distinction compared to Varistar other than position of hinges

The new and improved Varistar CP cabinet platform is compatible only with Varistar CP parts.
Varistar legacy cabinet parts cannot be mounted on the Varistar CP platform

Varistar CP EMC doors have large number of locking points and hinges for larger dimensions

5 Point Locking and 5 hinges for:

  • 2200H / 47U


Varistar CP IP55 doors have no visible distinction compared to Varistar other than position of hinges

The new and improved Varistar CP cabinet platform is compatible only with Varistar CP parts.
Varistar legacy cabinet parts cannot be mounted on the Varistar CP platform

Multiple locking options available for Varistar CP IP55 and EMC handles

  • The IP55 and EMC handles can now accommodate KABA and ASSA locks as well, which was not possible in the Varistar legacy assortment
  • Externally the handles look identical
  • Handle with lock 1333 on front and rear door as standard
  • Key 1333 with nVent SCHROFF Logo

The new and improved Varistar CP cabinet platform is compatible only with Varistar CP parts.
Varistar legacy cabinet parts cannot be mounted on the Varistar CP platform

VARISTAR CP Compiled

        Frame Side panel 19" Deco Frame Doors with 1point IP20 Doors with 3point locking IP20 MLR Electronic lock (only for IP20 applications) With Mounting plate IP20 IP55 Doors EMC Doors Rear panel Top cover Base panel Castors Adjustable feet Stationary plinth Mobile plinth Panel mounts Mounting plate Swing Frame Slide rails stationary shelfs 19" shelf stationary Cable Management Earthing Bars Packaging
        Frame Static Mobile Frame Grounding Kit
for Cabinet
4 mm²		 Grounding Kit
for Cabinet
4 mm²		 Grounding Kit
for Cabinet
4 mm²		 Grounding Kit
for Cabinet
4 mm²		 Grounding Kit
for Cabinet
4 mm²		 Grounding Kit
for Cabinet
10 mm²		 Grounding Kit
(Round Braid) for Cabinet
4 mm²		 Side by side
mounting kit
IP20		 Side by side
mounting kit
IP55/EMC		 Coupling roof trim Coupling roof trim IP55/EMC IP20 kit IP55 gasketing kit EN45545 EMC gasketing kit EN45545 Screw fixed IP20 Screw fixed for IP55 Screw fixed for EMC With quick release fastener and Locking 1333 Internal Safety device Divided Side Panel with quick release fastener and Look 1333 Divided Side Panel with screws Deco Frame Adaptor bracket Deco Frame 800W for 19" Deco Frame 800W for swing frame Glass door with key plate and 1 point locking 1333 Steel door with key plate and 1 point locking 1333 Perforated door with key plate and 1 point locking 1333 Glass door with lever handle and 1 point locking 1333 Steel door with lever handle and 1 point locking 1333 Perforated door with lever handle and 1 point locking 1333 Glass door with 3point locking 1333 Perforated steel door with 3point locking 1333 Steel door with 3point locking 1333 Steel double door with 3point locking 1333 Perforated double door with 3point locking 1333 Glass double door with 3point locking Handle with round cylinder 1333 Handle for DIN profile half cylinder (w/o cylinder) DIN profile half cylinder 1333 DIN profile half cylinder 2233 DIN profile half cylinder PUSH Handle for ASSA cylinder (w/o cylinder) Handle for KABA cylinder (w/o cylinder) MLR1000 MLR3000
HID		 MLR3000
Mifare		 MLR5000
HID		 MLR5000
Mifare		 Power Supply for MLR Transponder Cards (125kHz) Cards Stand Alone Gateway for MLR Desktop Reader for MLR Administration Suite MLR Management Software Battery Pack for MLR Door Switch Door contact Switch, Cabled, Schuko/UTE Door Switch Assembling Kit Perforated steel door With eHandle with 3point locking (Left hinged) Perforated steel door With eHandle with 3point locking (Right hinged) Perforated double door With eHandle eHandle with keypad Mounting plate + short door steel 3 pts Mounting plate + short door glazed 3 pts Mounting plate with brush strip + short door steel 3 pts Steel door IP55 with Muliple point locking DIN Profile Push Glass door with Muliple point locking DIN Profile push Mounting plate+ short door steel Muliple point locking Steel door EMC with Muliple point locking Push Perforated door EMC with Muliple point locking Push Mounting plate+ short door steel Muliple point locking Door Stopper DIN profile half cylinder 1233 DIN profile half cylinder 2233 DIN profile half cylinder Square 8 mm DIN profile half cylinder Triangle 6,5 mm (CNOMO) IP20 rear panel IP20 + mountig plate and brush Internal Safety device IP55 mounting plate + short rear panel IP20-IP55 bottom mounting plate + short rear panel IP20-IP55 top Rear panel EMC mounting plate + short rear panel EMC bottom Plain flush top cover IP20 Plain flush top cover for IP55 Plain flush top cover for EMC top cover perforated Internal Safety device lifting eyes for flush top covers Top cover with pre-cutouts
(lateral cut-outs only for 800W)		 Top cover with reduced numbers of cutouts (lateral cutouts only for 800W) brush strip kit fan insert YCabel Thermostat With Integrated Temperature Sensor for Cooling Thermostat With Integrated Temperature Sensor for Cooling with bracket Thermostat With Integrated Temperature Sensor for Cooling with bracket Thermostat With Integrated Temperature Sensor for Heating Extension cable for speed controller IEC C13 to Schuko/UTE Extension cable for speed controller IEC C13 to IEC C14 Extension cable for speed controller IEC C13 to BS IEC Speed control for fans cover perforated edge protection Raised top cover Fan top cover for 6 fans ECO Fan top cover for 6 fans EMC fan top cover for 6 fans ECO EMC Fan top cover for 6 fans, 6 Fans included lifting eyes for fan top cover or raised top cover Additional AC Fan for top cover ECO Fan for top cover base plate multi piece - Static Frame base plate multi piece - Mobile Frame Kit IP55 brush strip dust filter cover Cover with cable entry IP55 base plate with lateral cable ducting base plate with lateral cable ducting for mobile frame One piece base plate IP55 base plate IP55 with cable entry One piece base plate EMC base plate EMC with cable entry base plate EMC perf. with cable entry With adjustable feet 400kg/frame Caster
900 kg/frame		 Caster ø125 mm with rubberized roller static load carrying capacity 1600 kg per cabinet ventilated in front and back (integrated frame and feet 100 mm) ventilated in front and back (integrated frame and feet 200 mm) closed in front and back (integrated frame and feet) 100mm closed in front and back (integrated frame and feet) 200mm side trims for plinth 100 mm side trims for plinth 200 mm tip over protection
100 mm		 tip over protection
200 mm		 Tip over protection for base mounting Mobile plinth 19" assembly kit M6 (Pozi and PA6 washer) 19" assembly kit M6 (Torx 30 and grounding washer) 19" Panel mounts with U Height identification and usable for fingers 19" Panel mounts Electronic 19" Panel mounts Electronic Aluzink U Height identification for 19" ETSI panel mounts Heavy Load cross bar 19" or 23" adaptor bracket for reduced width (to 19") depth members C-rail blanking panel 600w blanking panel 800w plain blanking panel 800w 2U cut outs brush strip kit for 2U Cut out (2 cut outs) blanking panel 800w Brush strip and fingers Vertical cable management channel Finger Kit 75 mm recessed 145 mm recessed Separating wall Full height Height 1200 mm Strengthening bracket Swing Frame 120° Swing Frame 160° safety lock swing frame panel Symetric swing frame panel Asymetric swing frame stop 120° swing frame stop 160° 25 kg 100 kg short slide rail, 15 kg stationary shelf, 1U, 75 kg stationary shelf, 1U, 75 kg
shortened 100 mm		 telescopic shelf with slide rails, 70 kg telescopic shelf with slide rails, 70 kg, shortened 100 mm mounting bracket lock earthing kit 19" shelf stationary, 1U, 75 kg 19" shelf stationary, 1U, 75 kg shortened 100 mm 19" shelf depth adjustable, 2U, 15 kg earthing kit 19" telescopic shelf, 70 kg, 2U, with slide rails lock earthing kit cable tie velcro strip 19" cable duct. Panel Horizontal 1U cable channel Horizontal 2U cable channel 19" panel for cable eyes Double cable eye steel
80 mm D 		Double cable eye steel
115 mm D		 Rubber Pad for double steel cable eye 80 mm D Rubber Pad for double steel cable eye 115 mm D cable eye steel 110 mmD cable eye plastic 55 mmD cable eye plastic 100 mmD cable support for the depth crail cable retention rail for crail slide nut for crail cable shell Horizontal gasket (under the cabinet) cable panel
250 mm		 Cable panel
150 mm		 cable ladder Depth Cable Tray Tray for excess cable lengths cable support for the width crail for the width plastic cable eye 100x100 plastic cable eye 90X40 for 600 wide cabinets steel cable eye 100x100 steel cable eye 100x180 LWL cable eye DNS Panel Mount LWLcable eye Electronic Panel Mount PDU fixing kit GND / Earthing bars- copper flat strip Flat earthing bar with pre-mounted screws Basic packaging Option 1 : PE bag + surrounding cardboard Option 1 : PE bag + surrounding cardboard
        Computer software   when using 2 fan inserts 1xY when using 3 fan inserts 2xY are neccessary
      Loading 1600Kg 1000Kg                                                       64% Perf. (24 – 38U)
80% Perf. (42 – 52U)		     64% Perf. (24 – 38U)
80% Perf. (42 – 52U)		   64% Perf. (24 – 38U)
80% Perf. (42 – 52U)		                                                                           64% Perf. (24 – 47U)
80% Perf. (42 – 52U)		                                                                                                                   400Kg 900Kg 400Kg 1600Kg                 1600Kg                 1600Kg 200Kg per Kit                                             25Kg 25Kg 100Kg 100Kg 15Kg 15Kg 75Kg 75Kg 70Kg 70Kg       75Kg 75Kg 15Kg   70Kg
                                                                                                                                                                                                              EN60320/C13/C14 SCHUKO/UTE DIN 49441                                                       1 1 ø60 ø64 ø125                                     19" or 23"                                                                                           1U 2U 1U 2U 1U
      Quantity 1 1 10 Wires 4 Wires 5 Wires 6 Wires 7 Wires 10 Wires 10 Wires 4 Units 6 Units 1 1 1 1 1 2 2 2 2 1 2 2 1 2     1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1     1 1 1 1 1 1 10 1 1 1 1 1                 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4 1 1 1 1 1 1             1 1 1 1 1 1 1 1 1 1   1 1 1 1 1 1 1 1 1 1 1 1     4 4 4 4 1 1     1 1 1 1 2 1 50 50 4 2 2 4 2 4 4 2 2 1Kit 1Kit 1Kit 2 1Kit 1Kit 20 1 1 1 1 1 1 1 1 1 1 1 1 1 2 10 2 10 2 10 1 1 1 1 4 1 1 1 1 1 1 1 1 1 25   2 2 1 1 1 5 5 5 5 5 5 5   2   10 10 1 2   2 2 2 2 2 4 4 4 4 2 2 1 1 1 1 1 1 1 1 1 1 1 1
      Material     Kit Kit Kit Kit Kit Kit Kit Kit Kit St 1mm St 1mm Kit Kit Kit St 1mm St 1,5mm St 1mm St 1mm Kit St 1mm St 1mm St AlZn 2,0mm     Sekurit Glas 6mm St 1,5 mm St 1,5 mm Sekurit Glas 6mm St 1,5 mm St 1,5 mm Sekurit Glas 6mm St 1,5mm 3 hinges St 1mm St 1,5 mm St 1,5 mm St 1,5 mm                                                     St 1,5mm St 1,5mm St 1,5mm St 1,5mm St 1,5mm St 1,5mm St 1,5mm St 1,5mm 1,5mm   Kit Kit Kit Kit St 1,0mm St 1,5mm Kit St 1,5mm St 1,5mm St 1,5mm AlZn 1,5mm SST 1,5mm St 1,5mm St 1,5mm St 1,5mm St 1,5mm Kit   St 1,5mm St 1,5mm AlZn 1,5mm AlZn 1,5mm Kit Kit             Kit AlZn 1,5mm Kit St 1,5mm St 1,5mm St 1,5mm St 1,5mm St 1,5mm       St 1,5mm St 1,5mm           St 1,5 mm St 1,5 mm AlZn 1,5mm AlZn 1,5mm AlZn 1,5mm     PA/St PA/St PA/St PA/St                                     AlZn 1,5mm AlZn 1,5mm AlZn 1,5mm                     Zn 3mm Zn 3mm Kit St St Kit St St Kit Kit St 1,5mm St 1,5mm St 2,5mm St 2,5mm St 1,5mm St 1,5mm St 1,5mm St 1,5mm St 1,5mm St 1,5mm Kit Kit Kit St 1,5mm St 1,5mm St 1,5mm Kit St 1,5mm   Kit     St St St St St St St rubber rubber St St St St, 1,5mm Aluzink 1,5mm       St, 1mm St, 1mm St, 1mm round St St, 1mm       plastic, PA6 plastic, PA6     plastic plastic   Copper Copper Copper Copper Copper Copper Copper Copper Copper Copper Copper
Height
in U		 Height
in mm		 Width
in mm		 Depth
in mm
